A Transparent and Reversable method for changing Strike Weight Ratio
Steve Willis and I worked out this
method

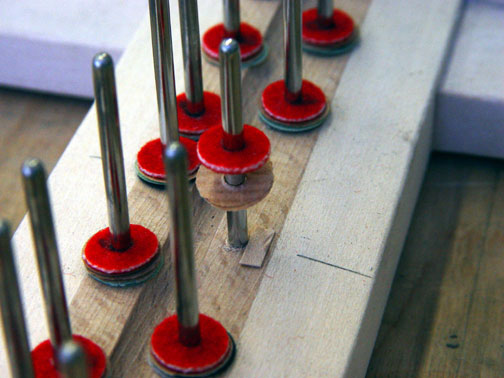

for changing Key Ratio by substituting balance rail punchings with a
veneer

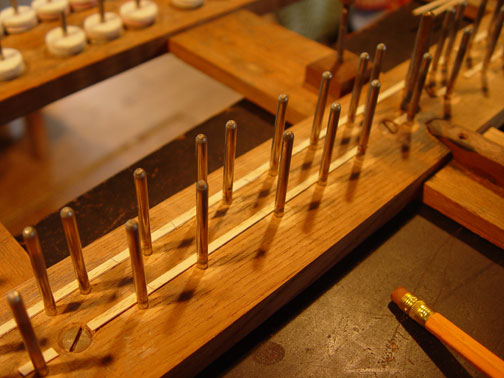

shim, either as a small patch or long strips. The Veneer shim
changes the balance point of the
key and effects a significant change in the Strike Weight Ratio (about
0.3 - 0.6 depending on the key length). When the shim is
applied
to the back side of the balance rail pin the effect is to reduce Ratio
making the action lighter. When added to the front the Ratio
increases
and makes the action heavier. An added benefit is that the shims
may be removed and the effect erased if need be. In
cases
when sharp ratios are noticabley higher than natural ratios (a result
of
the balance rail pins of the sharps being too close to the naturals) we
may use this technique on just the sharps in order to match the ratio
level
of sharps to the naturals.
David Stanwood April 6, 2004
